VPSA Oxygen Generator With Design Optimization Of Process And Structure To Give Full Play To Its Potential

VPSA oxygen generator with design optimization of process and structure to give full play to its potential

Working Principle Description:

VPSA vacuum desorption and pressure swing adsorption oxygen generation device uses high-quality zeolite molecular sieve to absorb nitrogen, and the unabsorbed oxygen is gathered at the tower top and transported to the oxygen storage tank as product gas. When the adsorption tower in adsorption state is close to saturation, the tower depressurizes and

The molecular sieve is regenerated by vacuum pumping and desorption, while the other adsorption tower begins to adsorb under pressure to produce oxygen. The two adsorption towers work alternately to complete the process of oxygen production.

Product Advantages:

• The design optimization of process and structure helps the system to give full play to its potential.
• The optimized design of process and structure, helping the system to reach the full potential.
• Optimized process of molecular screening, filling and compaction are completed in a professional environment in a professional way, with higher density and efficiency.
• The oxygen analyzer displays the oxygen purity in real time, the Siemens touch screen displays the working status online, and the standard communication can be used to realize DCS transmission and control.

Technical parameters:

● Nitrogen delivery ≤50Nm3/hr;

● Purity 93±3%

● Pressure 0.5~0.8 Mpa

● Atmospheric dew point ≤－40℃

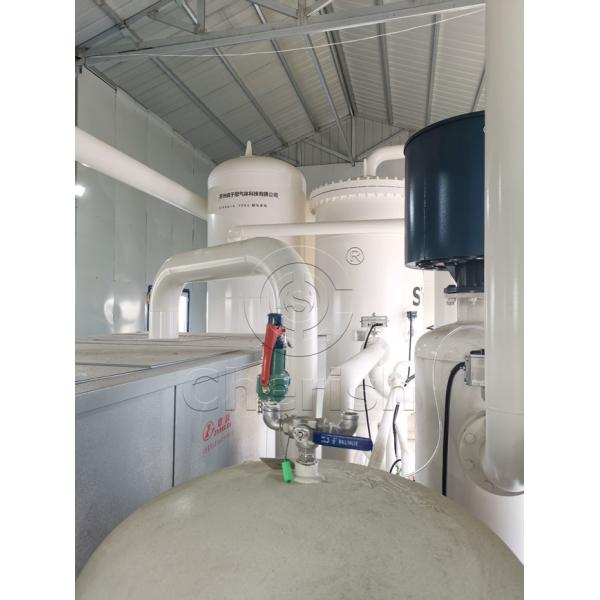

Product picture:

Optimization PSA Nitrogen Plant

Optimization PSA Nitrogen Generator
