VPSA Oxygen Equipment With Customizable Design To Meet Different Requirements For Industry Use
| Product name | VPSA Oxygen Generator |
| Oxygen delivery | ≤600Nm3/hr |
| Purity | 93±3% |
| Pressure | 0.2-0.3 Mpa |
| Atmospheric dew point | ≤－60℃ |
Working Principle Description:
The VPSA (Vacuum Pressure Swing Adsorption) oxygen generator employs a sequential process to produce oxygen:
Air Compression: Ambient air is taken in and compressed using a compressor, increasing its pressure and oxygen concentration.
Adsorption Towers: The compressed air is directed into adsorption towers that contain specialized adsorbents such as molecular sieves or activated carbon.
Adsorption Phase: During this phase, the adsorbents selectively capture nitrogen molecules from the compressed air, allowing oxygen molecules to pass through and become concentrated.
Pressure Drop Desorption: As the adsorption capacity of the adsorbents approaches its limit, the pressure in the towers is lowered. This causes the adsorbents to release the captured nitrogen molecules.
Oxygen Collection: The expelled nitrogen gas is discharged, while the oxygen-enriched gas is collected as the desired output.
Tower Switching: To ensure continuous oxygen production, the operation switches between adsorption towers. This enables the system to maintain a steady flow of oxygen while allowing the saturated towers to regenerate.
By utilizing the principles of selective adsorption and pressure manipulation, the VPSA process effectively separates nitrogen from the air, resulting in the production of oxygen with high purity. This method offers versatility, efficiency, and adaptability, making it suitable for various industrial and medical applications.
Product Advantages:
● Customizable design: VPSA oxygen equipment can be customized according to specific application requirements. According to factors such as oxygen production, purity requirements, and application environment, the number and specifications of adsorption towers, as well as other operating parameters, can be adjusted to achieve optimal performance and efficiency.
●Silent operation and low vibration: Modern VPSA oxygen generator typically have noise and vibration control measures to provide a quiet operating environment. This is crucial for medical applications and noise sensitive environments.
●Highly reliable oxygen supply system: VPSA oxygen generator are typically used in conjunction with highly reliable oxygen supply systems to ensure a continuous and stable oxygen supply. These oxygen supply systems include gas storage and distribution systems, which can store and distribute the generated oxygen to where it is needed to meet various application needs.
Technical parameters:
● Oxygen delivery: ≤600Nm3/hr;
● Purity: 93±3%
● Pressure: 0.2~0.3 Mpa
● Atmospheric dew point: ≤－60℃

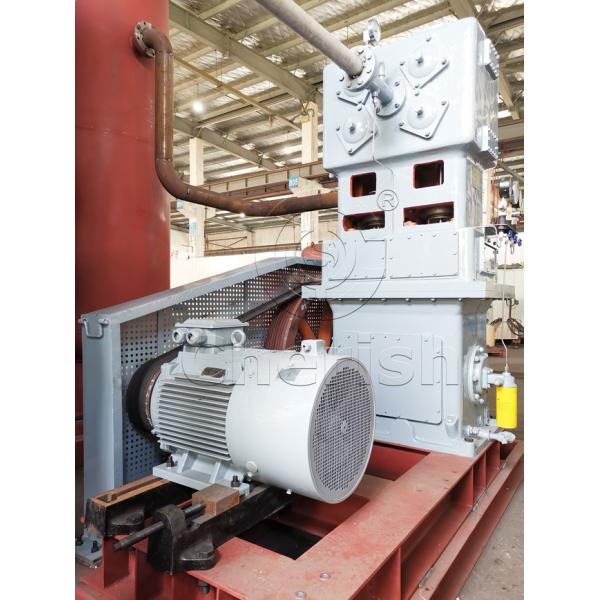

Product picture:
Product Tags:
|
|
Customizable Design VPSA Oxygen Equipment For Industry Use Images
|
